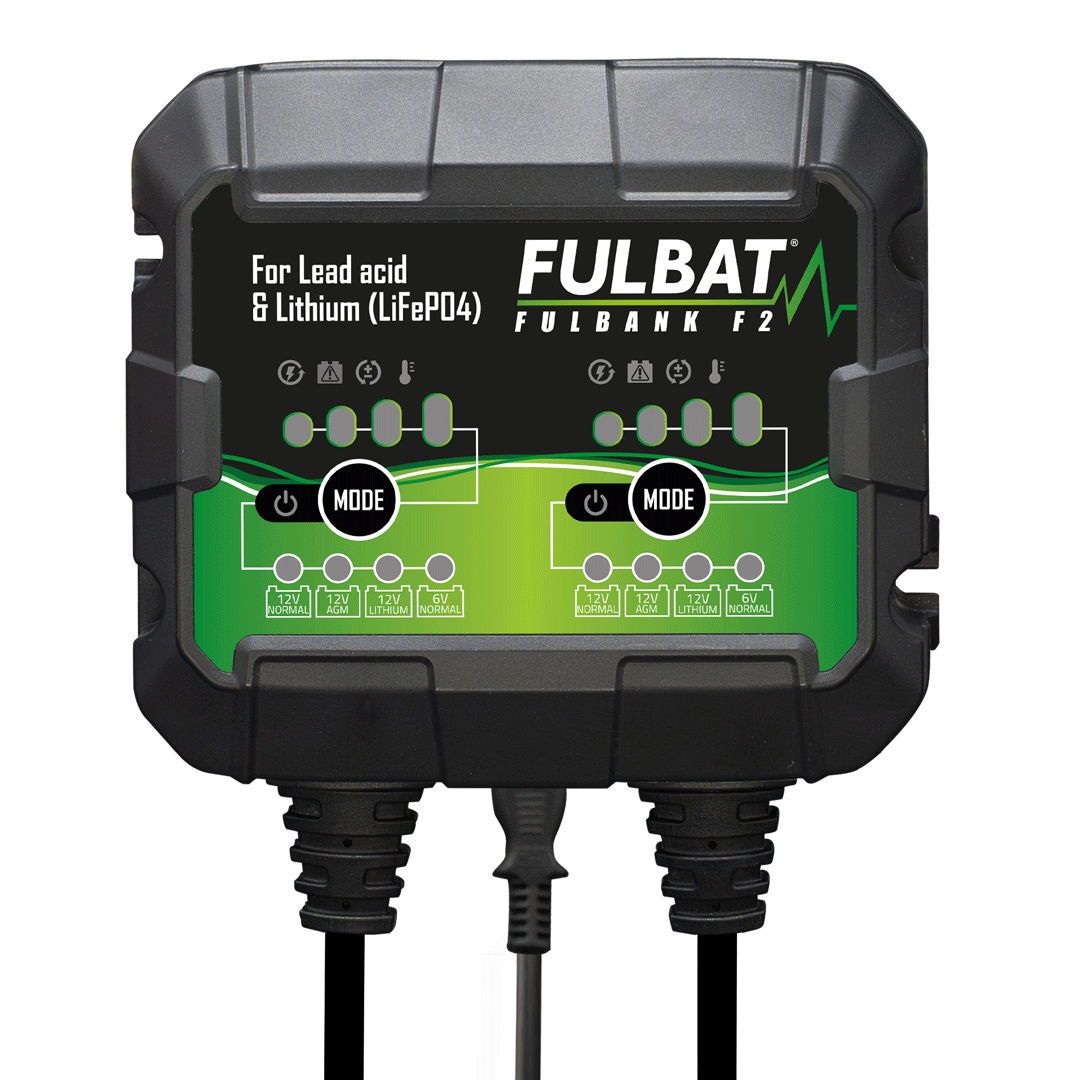

Fulbank F2

FEATURES

Wide compatibility: for 6V/12V Lead-acid batteries and 12V LiFePO4 batteries

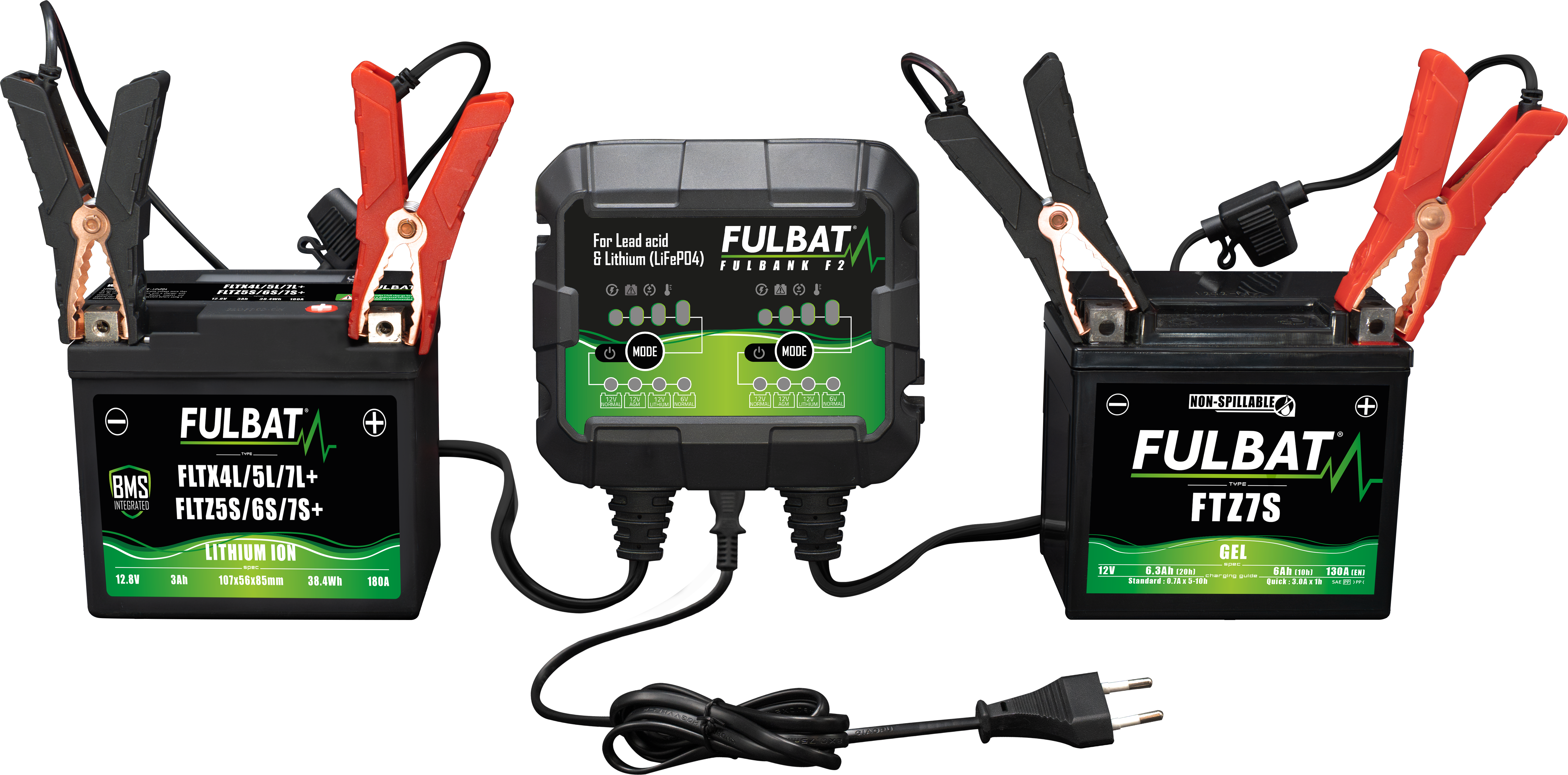

2 channels: charges and maintains 2 batteries with different voltage and technologies at once

4 charge modes: to suit different battery types and conditions.

Simple operation:connect, select charge mode and forget

Clear LED display:easy-to-read indicators for charging status

Very safe: protected against short circuits, reverse polarity, overcharging and overheating

The all-new FULBANK F2 is a compact, powerful automatic dual-bank charger and maintainer, designed for Lead-Acid and Lithium powersports batteries. It can charge both 6V and 12V batteries and handle different battery technologies and voltages simultaneously on its two banks, providing complete flexibility for all your charging needs.

With 4 selectable modes – including a dedicated Lithium mode – the FULBANK F2 offers excellent versatility for small to medium-capacity batteries (up 40Ah ), offering 6V /12V charging at 2A per channel,

Safe, efficient, and easy to use, its multi-stage charging process ensures optimal performance, reliable protection, and extended battery life.

The FULBANK F2 comes with two clamp sets.

The FULBANK F2 can be mounted on a FULBAT display using our assembly parts (PN: 700518) to create a full charging station, allowing up to 6 batteries to be charged at once — an ideal solution for professionals.

SPECIFICATIONS

Battery Technology: Lead Acid, Lithium

Battery Voltage (V): 12V, 6V

Battery Capacity (Ah): 4 > 40

Charging Rate (A): 2

Repair Function: Yes

Power Supply: No

CHARGING FEATURES

Charging curve – 3 stages

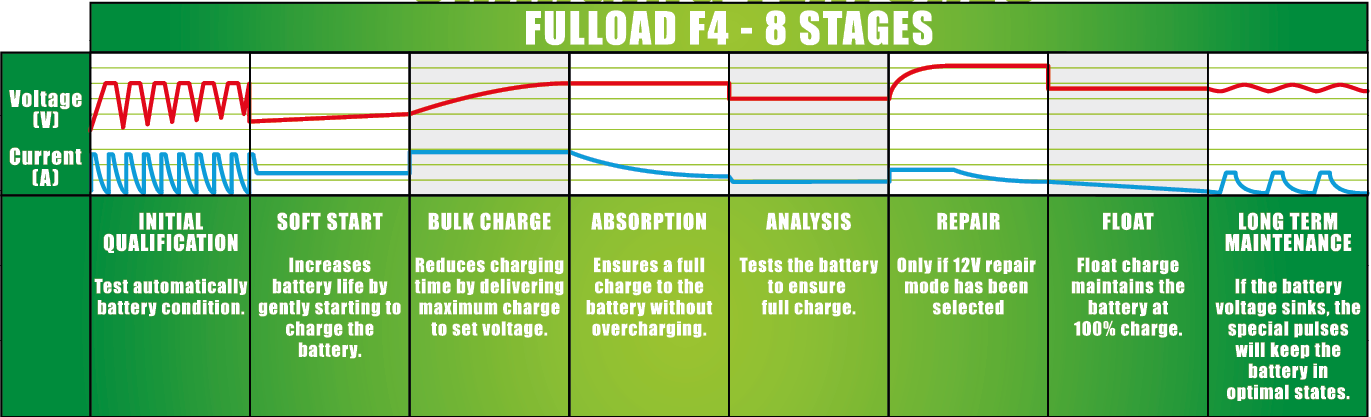

Charging curve – 8 stages

1. Initial diagnostic
2. Soft start
3. Bulk charge with high current up to 80%
4. Absorption charge up to 100%
5. Analysis
6. Repair
7. Float
8. Long term maintenance

FUNCTIONS

DOWNLOAD

Data sheet

Manual

Leaflet

FR | EN | ES
